Basic Info.
Model NO.
HT100KW-ON
Condition
New
Certification
ISO, CE, TUV
Application
Home, Industrial, Commercial
Specification
Home, Industrial, Commercial, Normal,Solar Panels, Solar Inverter, Solar Battery
Solar Panel Type
Monocrystalline Silicon, Polycrystalline Silicon
on Grid Inverter
50-100kw Three Phase
Mounting Structure
Customized for Roof/Ground
Output Voltage
380V/400/480V, 208V/230V/240V 3phase
Output Frequency
50/60Hz
Load Power
No Limited
Battery Type
None
Pre-Sales Project Design
Yes
Certificate
CE/TUV/ISO
Transport Package
Wooden Box/Wooden Pallet+Carton Box
Trademark
HiTek
Origin
China
HS Code
850132000
Production Capacity
100sets Per Week
Product Description
The Grid-Tied solar system is widely used for home and business for there is no need for batteries, so the whole system is relatively cheap.When the solar power is sufficient for loads to use you usually can save your bills, even the excess solar electricity will simply be exported to the grid, you will get paid a feed-in-tariff.
| C&I On Grid Solar System Configuration (Three Phase 50KW-1MW) | ||||
| Components | HT50KW-ON | HT100KW-ON | HT500KW-ON | HT1MW-ON |
| 560W Solar Panel | 90 Pieces | 180 Pieces | 900 Pieces | 1800 Pieces |
| DC Combiner Box | 1 Piece | 1 Piece | 5 Pieces | 10 Pieces |
| Grid Tied Inverter | 50KW | 1pcs 100KW | 5pcs 100KW | 10pcs 100KW |
| DC Cable 4mm2 | 600 Meters | 1200 Meters | 6000 Meters | 12000 Meters |
| MC4 Connector | 30 Pairs | 50 Pairs | 250 Pairs | 500 Pairs |
| Mounting System | Customized Product Based On Installation Roof/Ground | |||
| PV Installation Tools | 1 Set | 1 Set | 1 Set | 1 Set |
This product is not a specification, need to be configured according to your own needs, if necessary, welcome to contact our salesman to customize your exclusive solution.
How it Works?

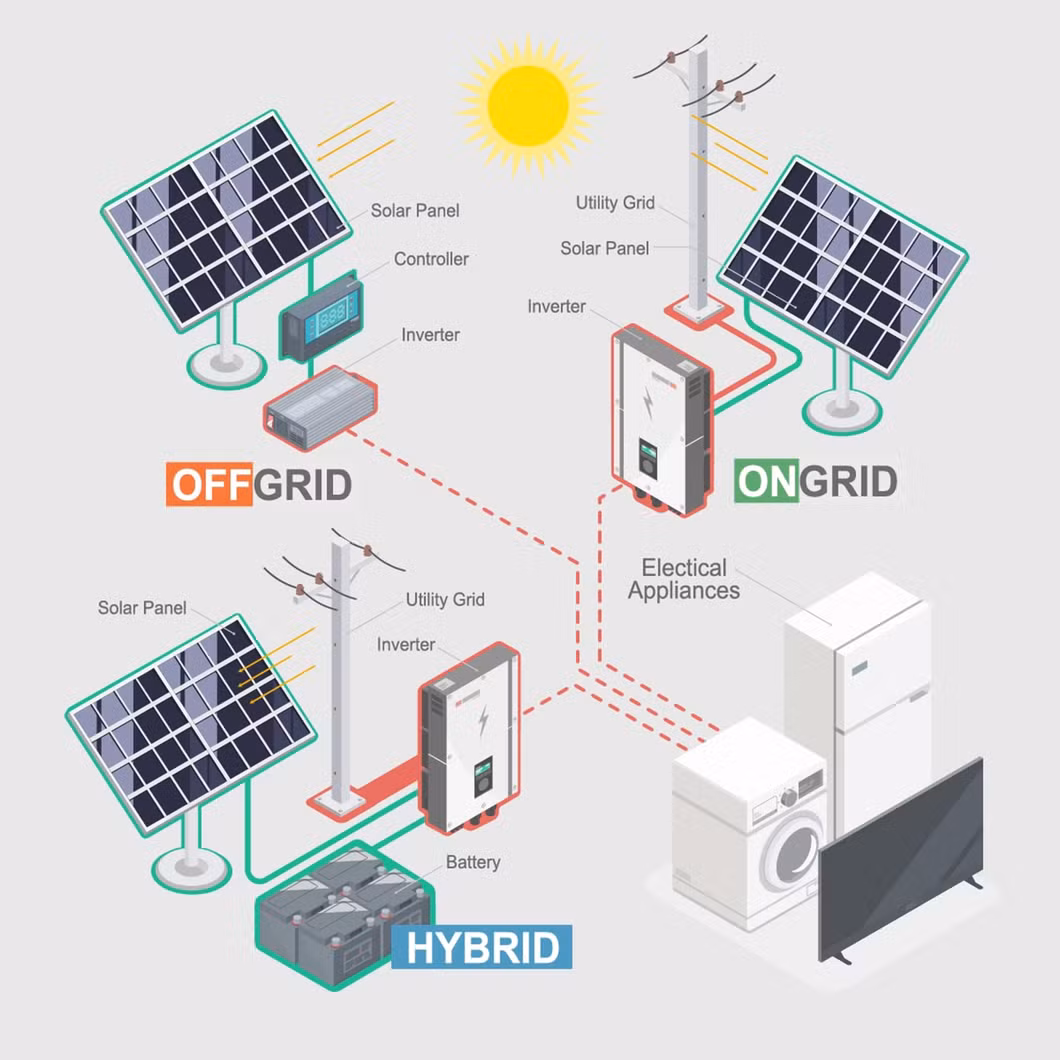

What is the difference between grid-connected, off-grid and hybrid systems?
HiTek PERC Mono Solar Panel
Model:HT560M-72
Peak Power Watts: 560Wp
Open Circuit voltage (Voc/v):49.84v
Short Circuit Current(Isc/A):14.14A
Voltage at Maximum Power (Vmp/V):41.08v
Current at Maximum Power(Imp/A):13.64A
Dimensions:2279*1134*35mm
Weight:28±3%kg
Model:HT560M-72
Peak Power Watts: 560Wp
Open Circuit voltage (Voc/v):49.84v
Short Circuit Current(Isc/A):14.14A
Voltage at Maximum Power (Vmp/V):41.08v
Current at Maximum Power(Imp/A):13.64A
Dimensions:2279*1134*35mm
Weight:28±3%kg

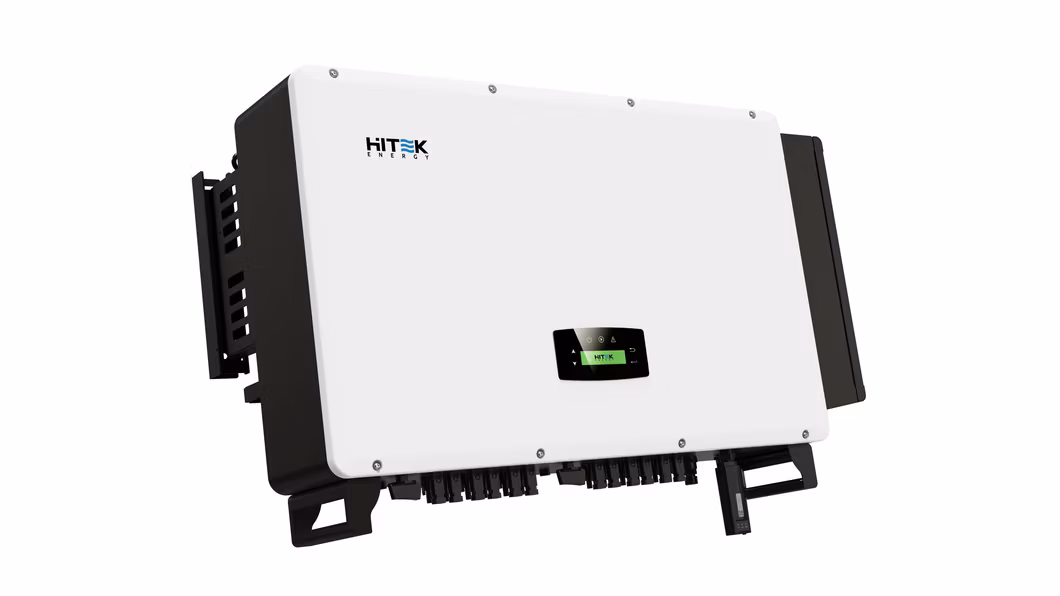

On Grid Solar Inverter
Max.efficiency 98.75%.Upto 10MPPTs.
Wide voltage range and low startup voltage.
Remote firmware upgrade with simple operation
Overvoltage load reductionand leakage current
suppression technology, low failure rate.
Max.efficiency 98.75%.Upto 10MPPTs.
Wide voltage range and low startup voltage.
Remote firmware upgrade with simple operation
Overvoltage load reductionand leakage current
suppression technology, low failure rate.
Online Monitoring system
Open station supports one-click
installation and registration Problem
support one-click dispatch and navigation
Safe operation,traceable logs,etc
Support lifecycle data storage to ensure
data security and reliability
DC & AC Disconnect Switch
IP Rating:IP66
Rated Voltage:1000vDc
Connection Type:M20,M25,MC4
Rated Current:16A,20A
IP Rating:IP66
Rated Voltage:1000vDc
Connection Type:M20,M25,MC4
Rated Current:16A,20A
DC Cable & MC4 Connector
Cross Section:4mm2,6mm2 0ptional
Rated Voltage:600vDC/1000vDc(TUV)
Rated Current: 55A,70A
Colors:Black For STD,Red Optional.
Lifetime:≤25 Years
Cross Section:4mm2,6mm2 0ptional
Rated Voltage:600vDC/1000vDc(TUV)
Rated Current: 55A,70A
Colors:Black For STD,Red Optional.
Lifetime:≤25 Years
PV Mounting System
Mounting Rail&Railsplice Kit: AI6005 &SUS304 Bolt.
MID&END Clamps: 30,35,40mm
L Foot Asphalt Shingle Mount & Hanger Bolt optional
Cable Clip & Tie Opional
Ground Clip & Lugs Optional
Mounting Rail&Railsplice Kit: AI6005 &SUS304 Bolt.
MID&END Clamps: 30,35,40mm
L Foot Asphalt Shingle Mount & Hanger Bolt optional
Cable Clip & Tie Opional
Ground Clip & Lugs Optional
HITEK ENERGY gets founded in 2018. As superior photovoltaic manufacturer, HITEK ENERGY's dedicated to providing sustainable and renewable energy solutions to strengthen homes, businesses and factories.
We provide tailored solar energy solutions for backup, residential, and commercial needs, catering to your unique power requirements.
At HITEK ENERGY, your satisfaction is our top priority. We use ONLY Reliable Approved Equipment.
We provide tailored solar energy solutions for backup, residential, and commercial needs, catering to your unique power requirements.
At HITEK ENERGY, your satisfaction is our top priority. We use ONLY Reliable Approved Equipment.
